EtherCAT®

Real-time industrial Ethernet Technology

EtherCAT® is a very flexible real-time Industrial Ethernet protocol published as IEC 61158 standard. The data exchange follows the 'processing on the fly' principle which means that data is passed by each slave device with just a minimal delay before it is processed. This makes EtherCAT to the ideal solution for Ethernet based industrial control systems with many distributed I/Os and/or cycle times less than 100 µs.

Development Services

esd electronics (esd) has been developing EtherCAT-Hardware and Software solutions since 2008. We offer standard products like EtherCAT Master and EtherCAT Workbench as well as customer specific solutions. As an active member of the EtherCAT Technology Group (ETG) (www.ethercat.org) we offer engineering services for all aspects of this technology.

Training and Workshops

Since 2008 esd has been conducting workshops on EtherCAT technology and supporting customers in the development of optimized EtherCAT hardware or software products. Training courses can be held at esd headquarters in Hanover or at the customer's site. The type, depth and duration of the measure is determined by the customer together with esd, taking into account the requirements of his project.

EtherCAT Logo

esd is a member of the EtherCAT Technology Group (ETG).

More questions? We are pleased to help you

EtherCAT Technology

  • Based on 100 MBit/s standard Ethernet (100BASE-TX or 100BASE-FX) without additional hubs or switches
  • Up to 65535 devices with a maximum line length of 100 m between two devices
  • Supports almost all topologies (line, tree, star, ....)
  • Hardware-based mechanisms guarantee data consistency in the slave devices
  • Hardware-based device synchronization (distributed clocks) with a jitter of less than 1 µs
  • Optional cable redundancy through a transitionless switching  in case of a single device fault or cable break enables a very cost-effective improvement of system availability.
  • Definition of higher protocols: CAN application protocol over EtherCAT (CoE), Ethernet over EtherCAT (EoE), servo drive over EtherCAT (SoE) and file access over EtherCAT (FoE)
  • For improved interoperability a device profile is available

EtherCAT Implementation

  • An EtherCAT slave device requires specific hardware, which is available as stand-alone EtherCAT controller, FPGA-based IP core or microcontroller with built-in EtherCAT support.
  • An EtherCAT master does not require special interface hardware. It can be implemented based on a standard network controller.

Tutorials

esd EtherCAT Workbench Quickstart

To protect your personal data, your connection to the video streaming provider has been blocked. Click to unblock the video streaming provider. By loading the video you accept the video streaming provider’s privacy policy. More information about the video streaming provider’s privacy policy can be found here: Google - Privacy & Terms

Video esd EtherCAT Workbench Quickstart Tutuorial

esd CAN-EtherCAT Gateway Quickstart

To protect your personal data, your connection to the video streaming provider has been blocked. Click to unblock the video streaming provider. By loading the video you accept the video streaming provider’s privacy policy. More information about the video streaming provider’s privacy policy can be found here: Google - Privacy & Terms

Video esd CAN-EtherCAT-Gateway Quickstart Tutorial

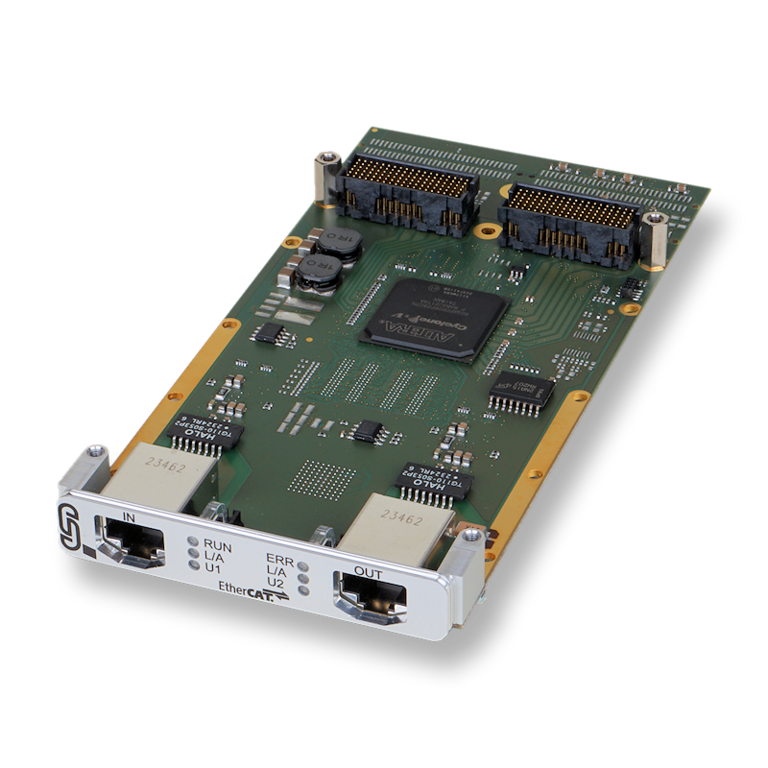

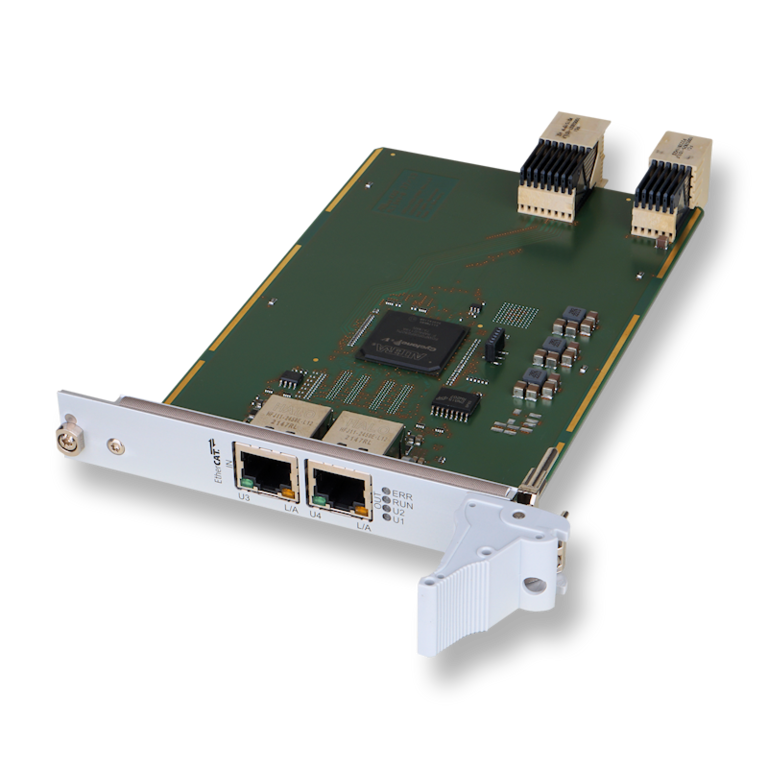

esd EtherCAT Products

CAN-EtherCAT

Linking EtherCAT and CAN: The CAN-EtherCAT gateway can link CAN modules with CANopen (CiA DS 301) or layer-2 (ISO 11898-1) implementation to a realtime EtherCAT network. The EtherCAT slave functionality is in accordance with ETG Modular Device Profile No. 5000.

View the product
ECS-PCIe/FPGA

The ECS-PCIe/FPGA is a PCI Express EtherCAT Slave interface board with IOs. The PCIe board provides an Ethernet Slave IP-core in an Altera FPGA.

View the product

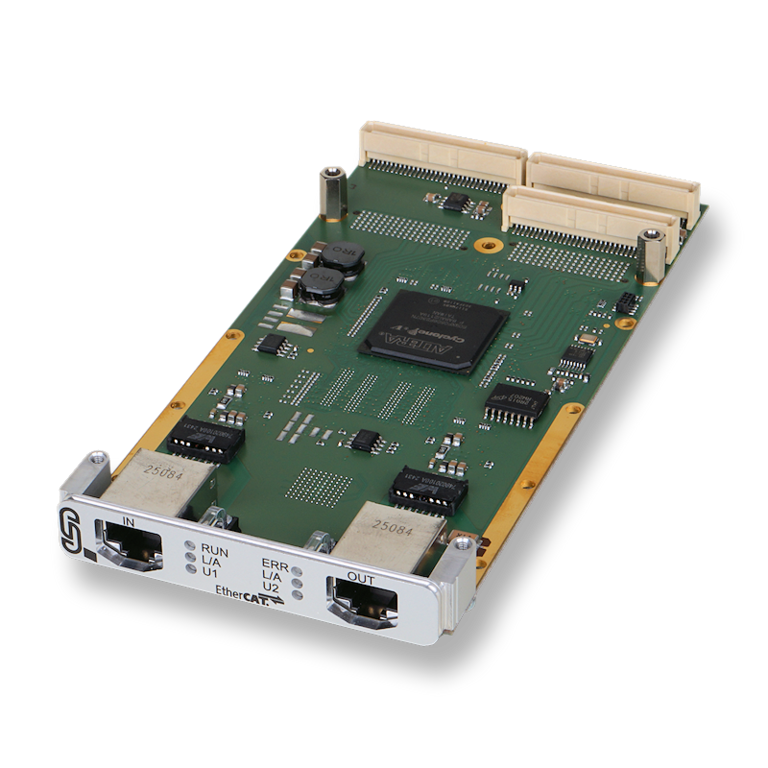

ECS-PMC/FPGA

Add EtherCAT Slave (ECS) functionality to your PMC equipped base board with the ECS-PMC/FPGA. Easy Configuration by esd's EtherCAT Master or other masters.

View the product
ECX-Master-Selector

The dual Ethernet Master Selector for two redundant EtherCAT, Sercos III, PROFINET, ... -Masters. It is equipped with a LAN selector switch that is controlled by an input signal to connect an EtherCAT network to one of two different EtherCAT masters with cable redundancy.

View the product
ECX-ETH-Selector

The ECX-ETH-Selector is designed to Build Redundant EtherCAT Master Systems. One EtherCAT-G network is connected to the primary or the secondary EtherCAT Master by a simple control signal. Flexible application range to switch one network between two Masters / PCs for all Ethernet based systems or field bus standards up to 1000BASE-T

View the product
ECX-DIO8

The ECX-DIOI module offers 8 digital I/Os, inputs 24 V, outputs 24 V / 0.5 A , Power via InRailBus or individual power feed via COMBICON connector, 100BASE-TX EtherCAT interfaces compatible to IEEE 802.3, configuration by EtherCAT master (XML file)

View the product
