CAN accessories

CAN wiring for the industrial environment

Feedthrough connector with termination

  • CAN termination DSUB (DSUB9 male connector with male contacts to DSUB9 male connector with female contacts)

Termination plug with grounding

  • DSUB9 termination plug with male or female contacts (including spade connector for optional grounding)

T-Connector

  • 2 DSUB9 connectors with female contacts, 1 DSUB9 connector with male contacts

Termination plug and T-connector

Stub lines and T-connectors are available for connecting individual CAN nodes to the CAN bus.
The cable length recommended by CiA for stubs is 0.3 m.
Both ends of a CAN network must be terminated with resistors of 120 Ω each.
esd offers different terminating connectors with and without ground contact for CAN_GND for the external bus termination.

Adapter cable for our CAN interface boards with DSUB25 and DSUB37 connectors

Some of our CAN interface boards offer DSUB25 or DSUB37 connectors to decouple a larger number of CAN channels. We offer adapter cables to use the normal DSUB9 connector in your application.

CAN-Repeater

In addition to the CAN lines, esd offers CAN repeaters with two or three ports, optionally with galvanic isolation.
The I-Repeater can be used to improve the load capacity of the CAN bus with subscribers or to insert a galvanic isolation (design "-Opto").
The Y-Repeater also forms a branch from one to two CAN lines.

Also have a look at our CAN cables

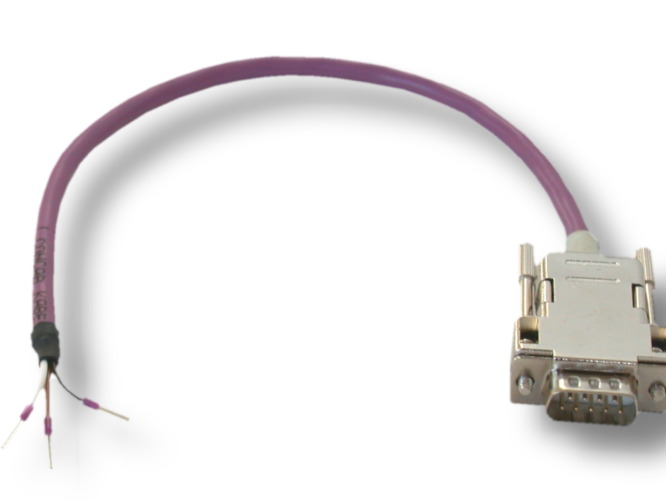

CAN Cable

The cables offered here for the industrial environment are intended for use in CAN systems. They can be used for all esd CAN devices.

Read more

Do you have special requirements regarding the product?

We are happy to provide you with a customer-specific option or adjustment to our products when purchasing appropiate quantities. Please contact our sales team for detailed information.


Please feel free to contact us

If you have any questions or would like more information, please do not hesitate to contact our sales team.

To the contact form
Telephone: +49 (0) 511 37298-0
E-Mail:        sales@esd.eu


Order items and accessories

With the help of the button "Add to watchlist" you can save articles on your watchlist.
Afterwards, you can request your saved watch list as a quotation via a contact form.

Hardware-Accessories

Number: C.1201.01

CAN-PHYSLAY-HSP HighSpeed CAN
add-on, ISO-11898 with DSUB-9 connector

Features:
  • Expansion board
  • galvanically isolated
Interfaces:
  • CAN
Zolltarif: 84733080
Number: C.1301.01

CAN-Termination, female
120 ohm terminating resistor,
DSUB-9 female,
PVC housing

Zolltarif: 85177000
Number: C.1302.01

CAN-Termination, male
120 ohm terminating resistor,
DSUB-9 male,
PVC housing

Zolltarif: 85177000
Number: C.1303.01

CAN-Termination, DSUB9 male to female
connector with integrated CAN bus
termination 120 R

Zolltarif: 85389099
Number: C.1311.03

CAN-T-Connector
2 x DSUB-9 female, 1 x DSUB-9 male

Zolltarif: 85177000
Number: C.2041.18

CAN-PCI/4XX-B4-1C4 DSUB37-to-4xDSUB9
4 CAN cables DSUB37(female) to 4 x
DSUB9(male)
suitable for
CAN-PCI/405-B4 C.2041.04
CAN-PCIe/402-B4 C.2045.08
CAN-PCIe/402-B4-FD C.2045.68

Zolltarif: 85444290
Number: C.2047.18

CAN/400-4-1C5 1xDSUB25-to-5xDSUB9
4x CAN-, 1x IrigB-Cable,
1x DSUB25 to
4x DSUB9(male) and 1x DSUB9(female),
Length: 0,5 m

Zolltarif: 85444290
Number: C.2047.19

CAN/400-4-1C4 1xDSUB25-to-4xDSUB9
4x CAN-Cable,
1x DSUB25 to 4x DSUB9(male),
Length: 0,5 m

Zolltarif: 85444290
Number: C.3000.01

CAN-CBX-TBUS
In-Rail-Bus connector

Formfaktor: Railmount
Zolltarif: 85177000
Number: C.3000.02

CAN-CBX-TBus-Connector-Female
to connect power supply (24V) and CAN
at CBX-In-Rail-Bus.
female type

Formfaktor: Railmount
Zolltarif: 85366990
Number: C.3000.03

CAN-CBX-TBus-Connector-Male
male type

Zolltarif: 85366990
